Description
Koolaire KDT0300A/K570 Description

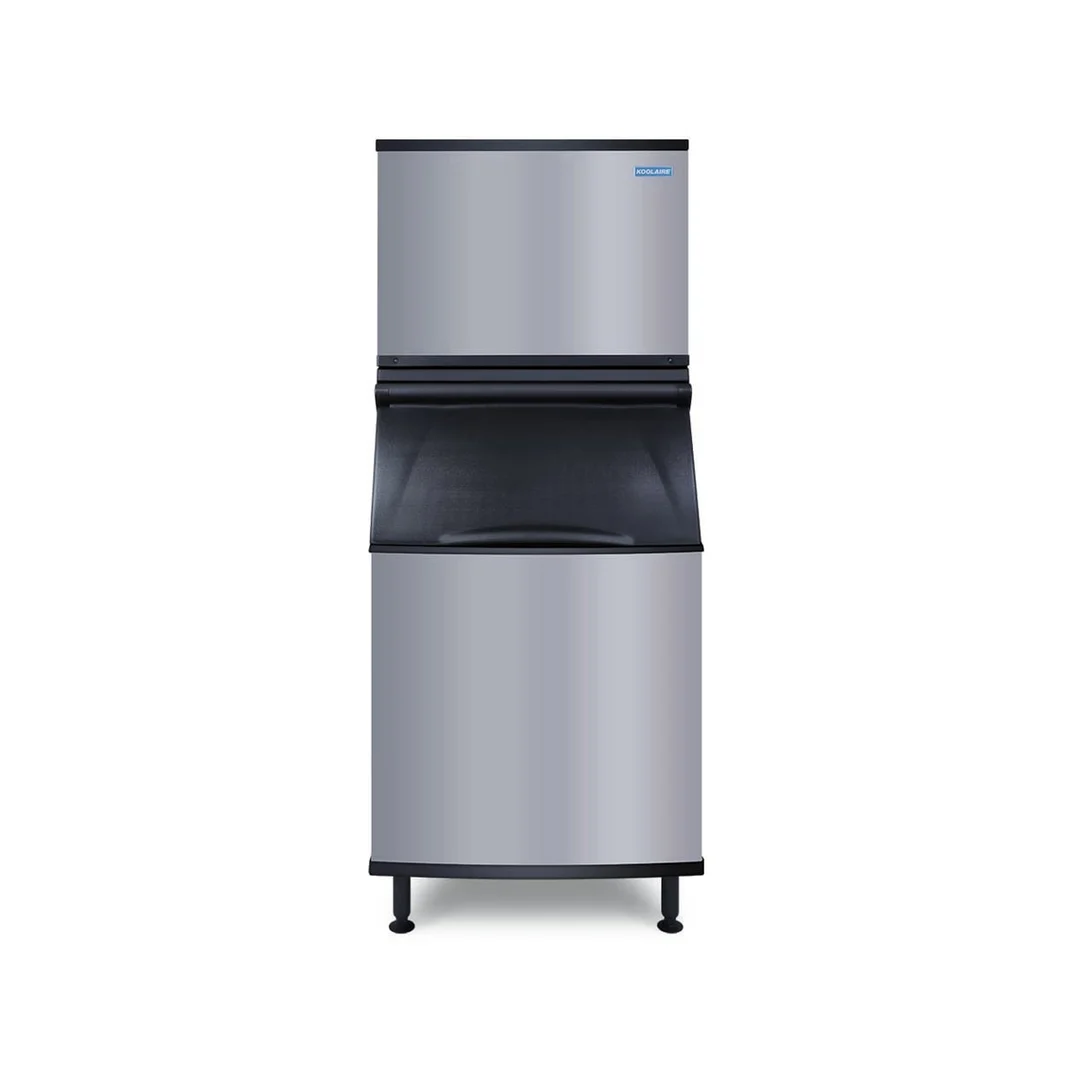

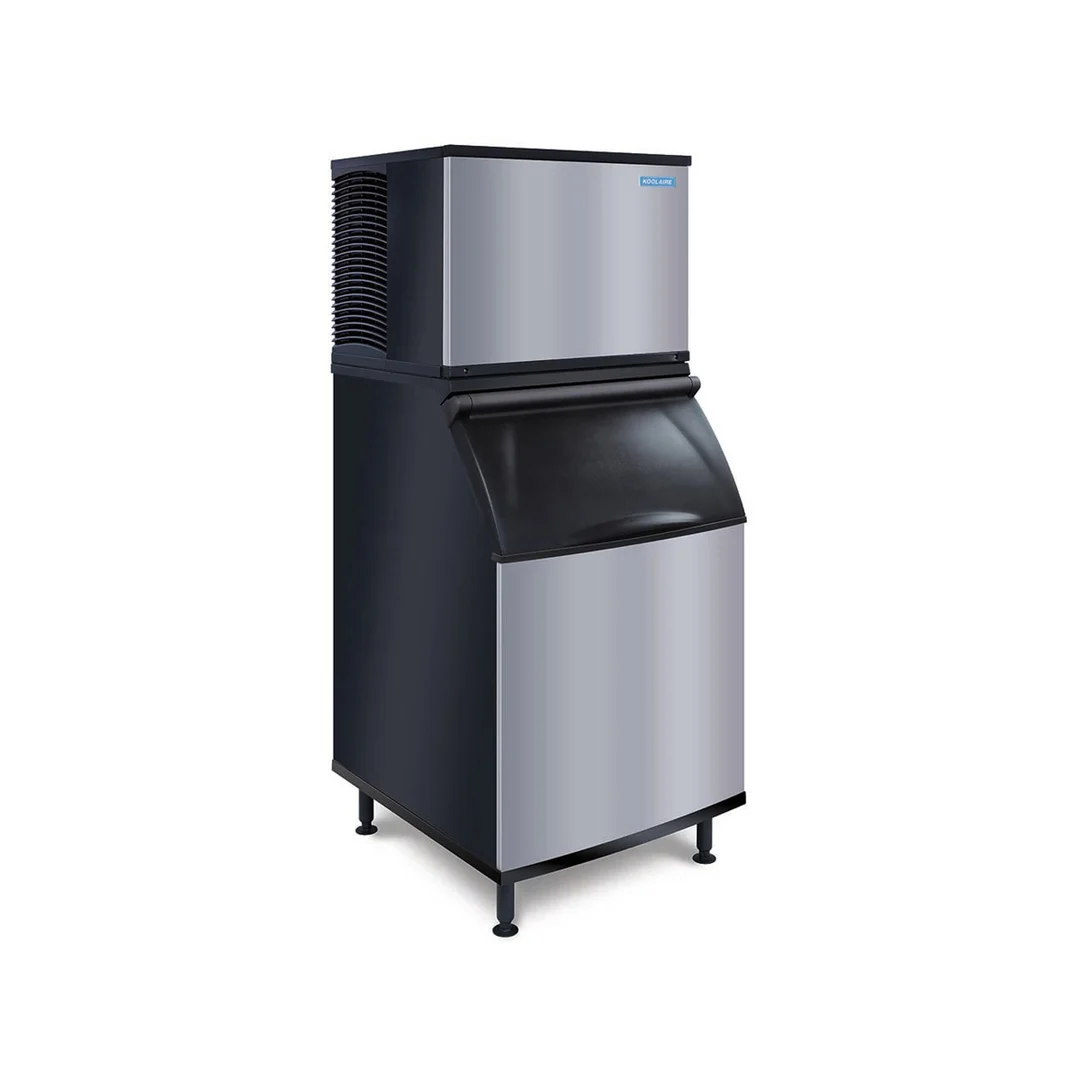

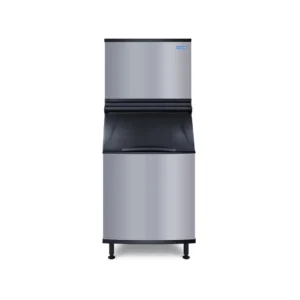

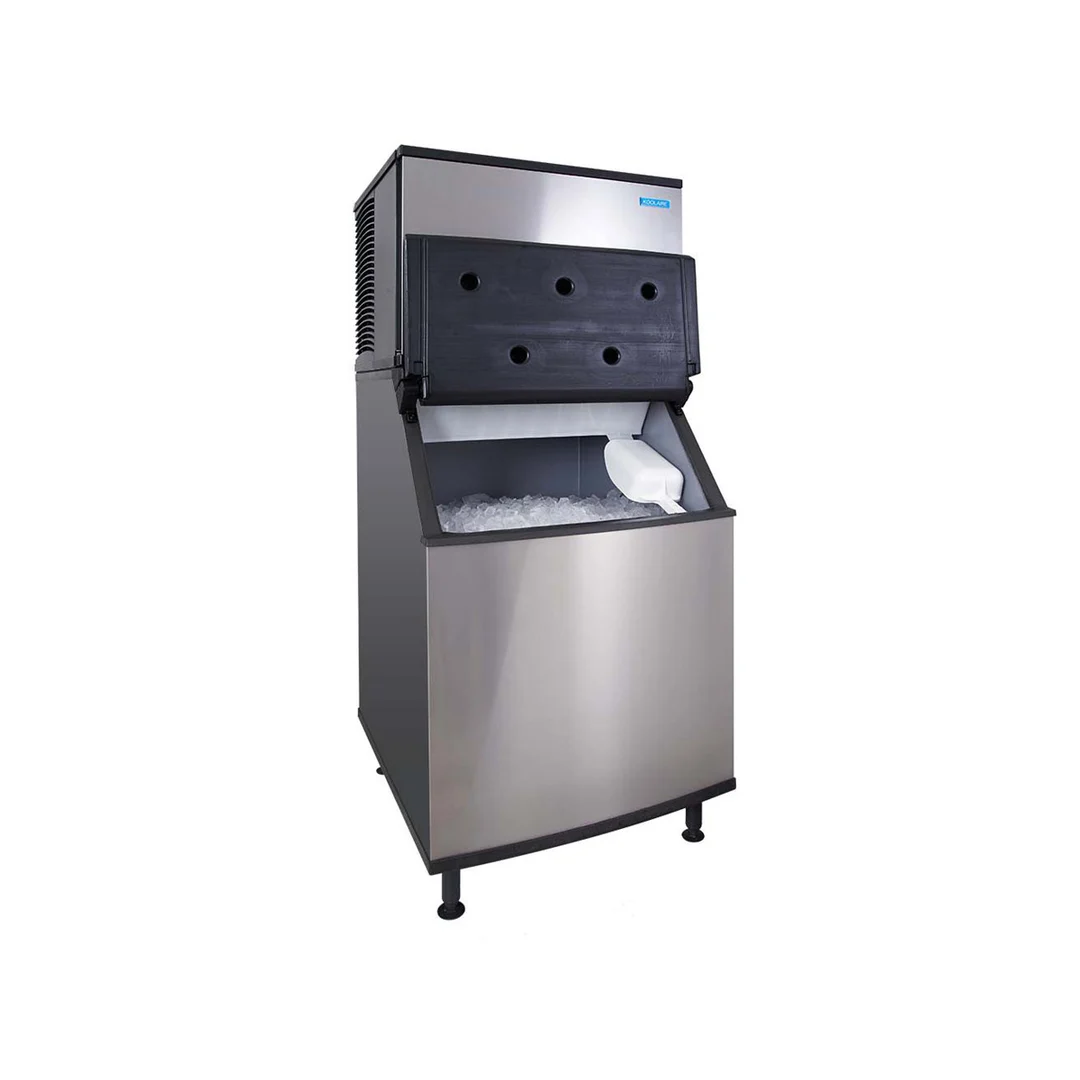

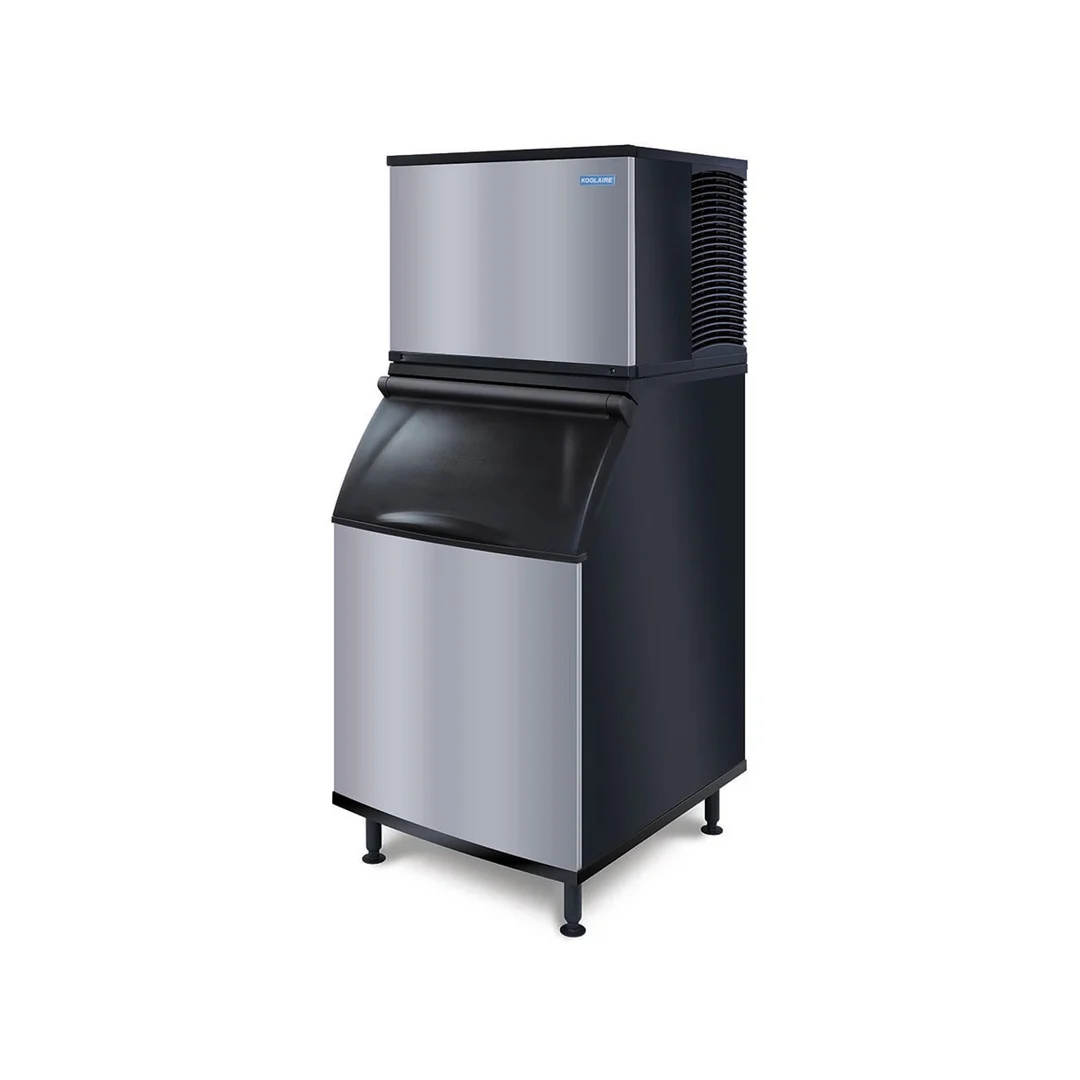

Producing as much as 333 pounds daily, the Koolaire KDT0300A/K570 ice maker with bin makes full-cube ice. These cubes are large and square, ideal for drinks in bars and restaurants. Its condenser uses fans to blow cold air over the refrigerant coils, cooling them so they can cool the evaporator plate. Through this process, water running over the plate freezes and forms ice.
The ice machine’s food zone, the area with parts that encounter ice and water, has corrosion-resistant plastic components. Since these components are white, users can see when cleaning is needed, and some of the parts in this area are removable to facilitate cleaning.
With a foam-insulated door, the bin retains cold air and reduces condensation buildup, while the door has a stay-open design that simplifies scooping. An ice scoop can be stored in the holder inside the bin, keeping it out of the ice to prevent contamination. So users can clean underneath the unit, the bin’s legs elevate it off the floor. This Koolaire KDT0300A/K570 ice machine head with bin has a stainless steel-like finish on the exterior, providing corrosion resistance and reducing smudging. The bin has black side panels that match the panels on the ice maker.
Ice Maker Details
- 333-lb. maximum daily ice production
- 230-lb. AHRI-certified daily ice production
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Air-cooled condenser operates with a fan that blows cold air over the equipment
- Uses R410A refrigerant
- Remove 2 screws and lift-off door for food zone access
- White plastic components in the food zone resist corrosion
- Removable water shield, floats, distribution tube, pump, and trough
- Exterior is similar to stainless steel that resists corrosion and fingerprints
- Required ambient air temperature: 40-110 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming water pressure: 20-80 PSI
Ice Bin Details
- 532-lb. application capacity
- Foam-insulated door reduces condensation and retains cold air
- Stay-open door design eases ice scooping
- 82-oz. scoop
- Internal scoop holder prevents handle from contaminating ice
- Stainless steel-like exterior finish
- Black panels on the sides match the ice machine head
- Legs keep the unit elevated for cleaning access
Dimensions & Utilities
- Ice Maker
- 30 in. W x 24 in. D x 21.5 in. H
- 9.4 A, 5.9 kW
- 115 V/60 Hz/1 ph
- Bin
- 30 in. W x 34 in. D x 44 in. H
*Free shipping on Koolaire KDT0300A/K570 within the 48 contiguous states.
Koolaire KDT0300A/K570 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| 24 Hr. Production (lb) | 330 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 532 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 65.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R410A |
| Series | KDT Series |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 252.00 |
Additional information
| Weight | 252 lbs |
|---|---|
| Dimensions | 30 × 34 × 65.5 in |
