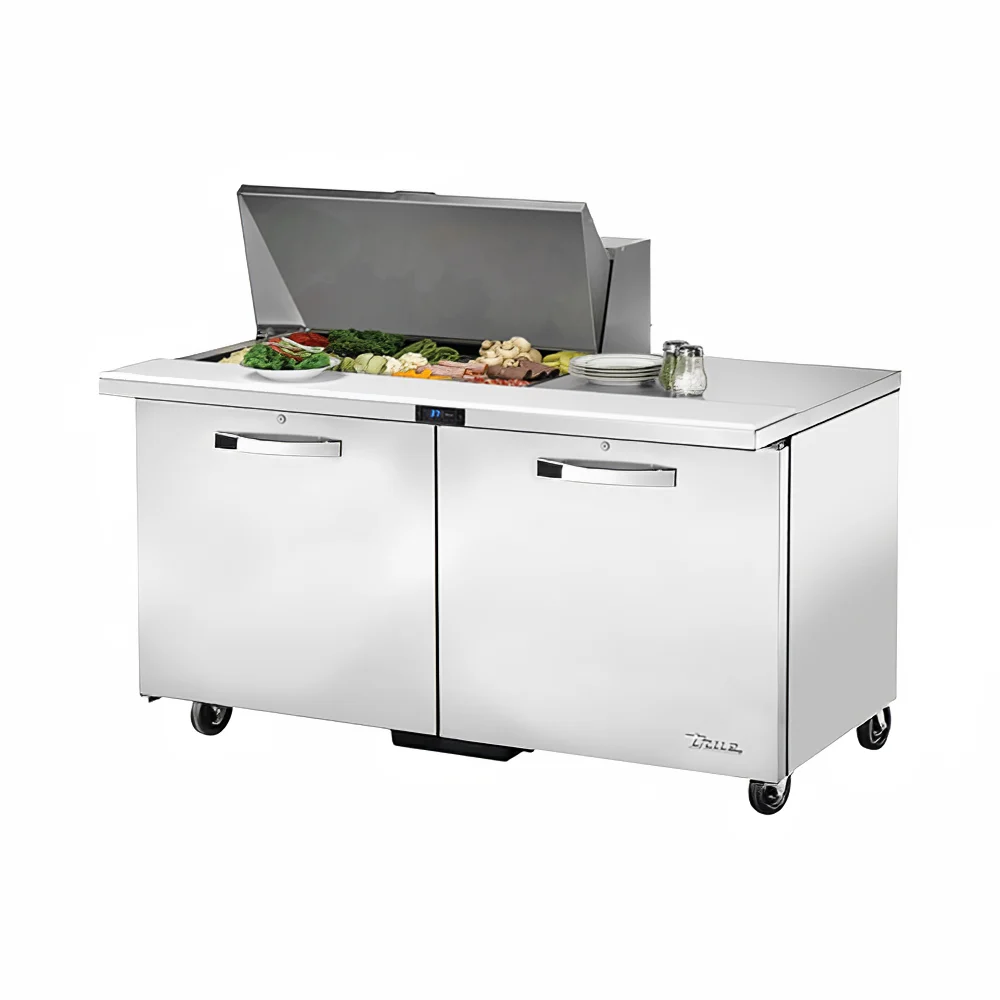

True   60″ TSSU Series Mega Top Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

Using R290 hydrocarbon refrigerant and capillary tubes, the refrigeration system on the True TSSU-60-15M-B-HC mega-top food prep table holds products at a set temperature between 33 and 41 degrees Fahrenheit in both the cabinet’s interior and food pans. Its self-lubricating fan motor and large fan blades supply uniform airflow throughout, and during maintenance, the condensing unit slides out from the back. Its reverse condensing fan motor removes dust and dirt from the condensing coil to maximize the unit’s efficiency. This mechanism operates by blowing in reverse for 20 seconds each time the compressor starts up. To ensure the coil remains clean, users should implement maintenance regularly.

This True TSSU-60-15M-B-HC prep table has an 8¹⁄₂-inch-deep cutting board that spans the top, and sandwiches or salads can slide from one end of the board to the other as meals are made. On the left, toppings are organized in 15 sixth-size food pans, while the right has open counterspace for snacks and equipment. To keep toppings cold and fresh, a cover pulls over the food pans, and additional ingredients can be stored in the base on adjustable shelves. Swing doors offer access to the cabinet, and although the doors self-close, they can also stay open at a 90-degree angle, so they do not interrupt staff when accessing the interior. For efficient cleaning, the shelves are coated with PVC, and the floor is made of stainless steel with coved corners.

Product Details

• High-density polyurethane foam insulates the cabinet and doors
• Self-closing doors have 90-degree, stay-open feature to ease the cleaning process
• 12-in.-long, recessed handles are permanently attached with sheet metal interlocks
• Removable, 1-piece magnetic door gaskets trap cold air inside
• 4 heavy-duty, PVC-coated wire shelves
• Includes 16 shelf clips plated in chrome
• Shelves can be adjusted in increments of ¹⁄₂ in.
• Comes with 15 sixth-size food pans that are constructed of clear polycarbonate
• Various other pan configurations can fit in the countertop with adapter bars (additional pans and adapter are sold separately)
• Foam-insulated lid and hood lock in freshness and minimize condensation
• Lid and hood are detachable for efficient cleaning
• White, high-density polyethylene cutting board is sanitary and provides a tough prep surface
• Cutting board can be removed for cleaning
• 23³⁄₄-in. open area for additional equipment and supplies
• Fully stainless steel exterior and corrosion-resistant, GalFan-coated steel back
• Clear aluminum liner and stainless steel exterior are designed to aesthetically blend with interior of cabinet
• Locks provided on front set of 5-in.-diameter castors
• Interior’s clear-coated aluminum liner is attractive
• Stainless steel floor with coved corners simplifies cleaning

Refrigeration System

• Large fan blades supply a low-velocity, high-volume airflow
• Guided airflow creates uniform temperatures in cabinet and food pans
• Temperature holding range: 33-41 degrees F
• Evaporator is coated in epoxy to prevent corrosion
• Dirt and dust removed from condensing coil using a reverse condensing fan motor
• Self-contained capillary tube system uses R290 hydrocarbon refrigerant, an environmentally friendly option
• Rear-access condensing unit slides out for convenient maintenance

Dimensions & Utilities

• Cutting board: 60⁵⁄₁₆ in. W x 8⁷⁄₈ in. D x ¹⁄₂ in. H
• Shelves: 27¹⁄₂ in. W x 16 in. D
• Sixth-size pans: 6⁷⁄₈ in. L x 6¹⁄₄ in. W x 4 in. D
• Overall: 60⁵⁄₁₆ in. W x 35¹⁄₁₆ in. D x 46¹⁵⁄₃₂ in. H
• 6.5 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
