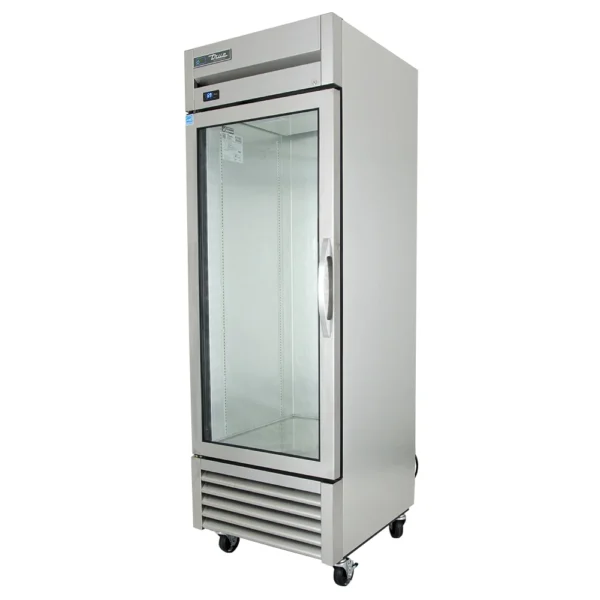

True T-23G-HC~FGD01 27″ One Section Reach In Refrigerator, (1) Right Hinge Glass Door, 115v
Cabinet temperatures range from 33 to 38 degrees Fahrenheit and can be monitored on the external display. It uses R290 hydrocarbon refrigerant, a more environmentally friendly option than traditional refrigerants. Thought it is prone to take in more dirt than top-mounted units, the bottom-mounted refrigeration system can be accessed for maintenance.
The reverse condensing fan motor in this True T-23G-HC~FGD01 reach-in refrigerator acts as a self-cleaning tool that can improve the condensing coil’s operation and efficiency. When the unit is turned on, it directs air in a revese direction to help remove collection of dust, dirt, and debris from the coil. Though this is an effective mechanism, it should not replace preventative maintenance.
Product Details

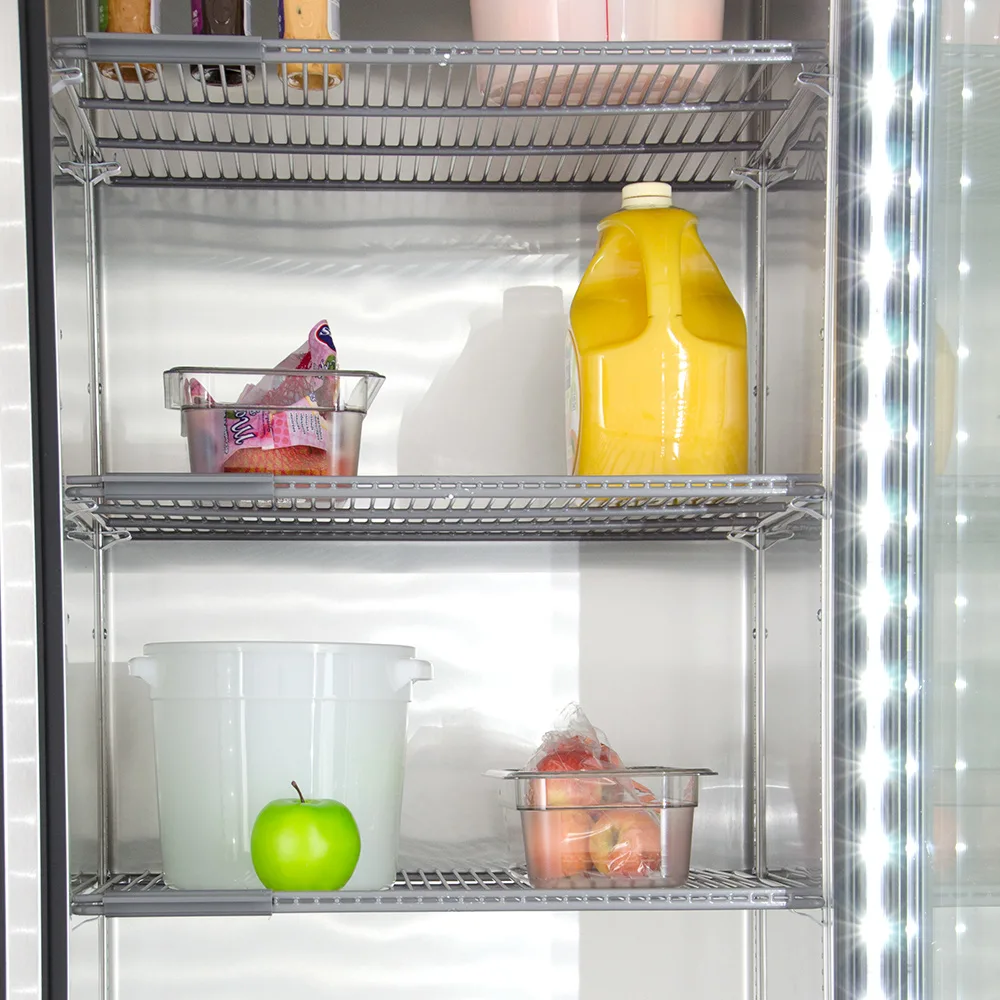

- 3 adjustable, PVC-coated shelves

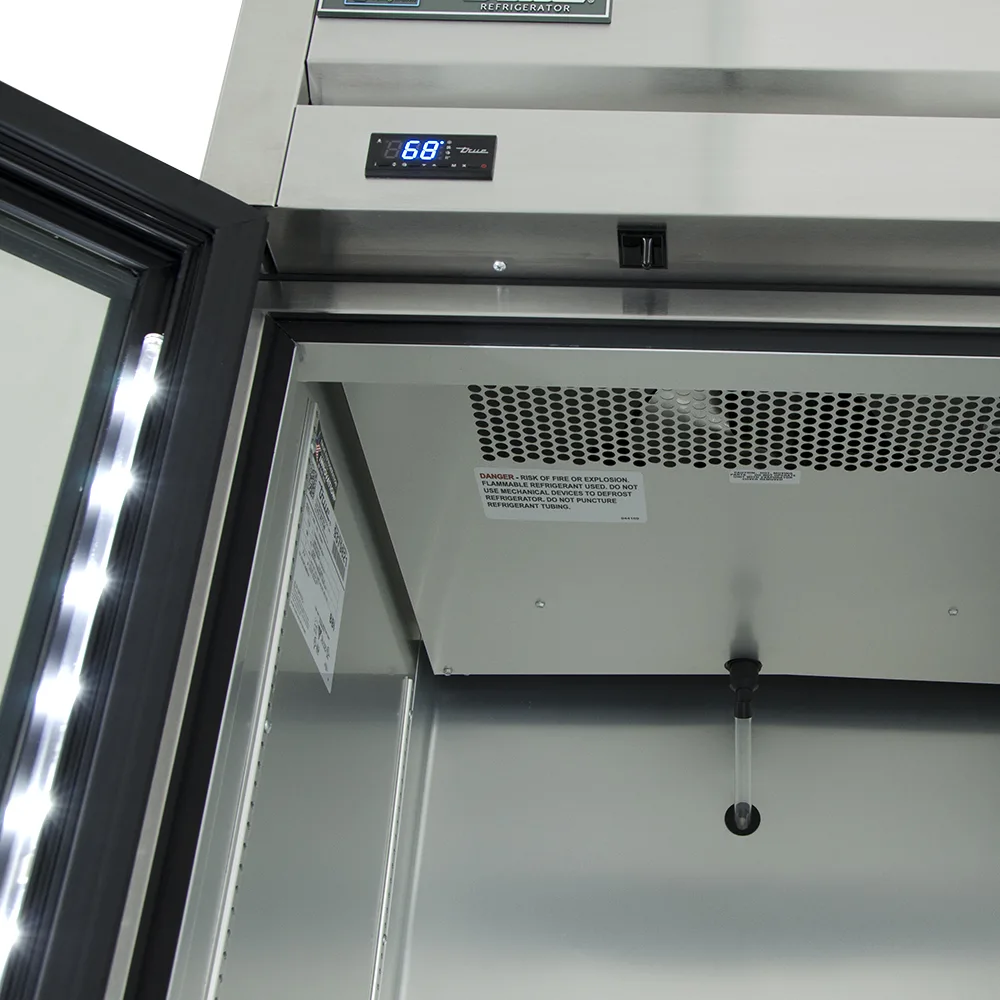

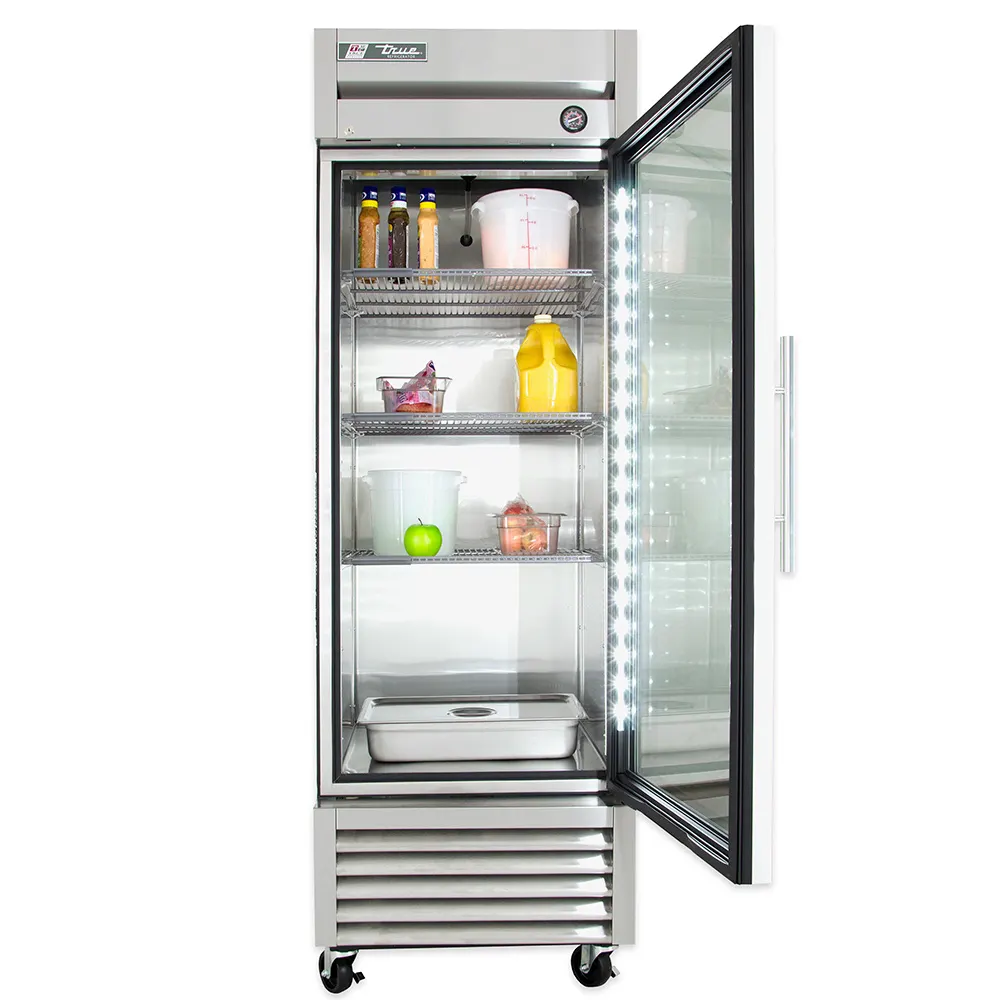

- LED cabinet lighting enhances visibility

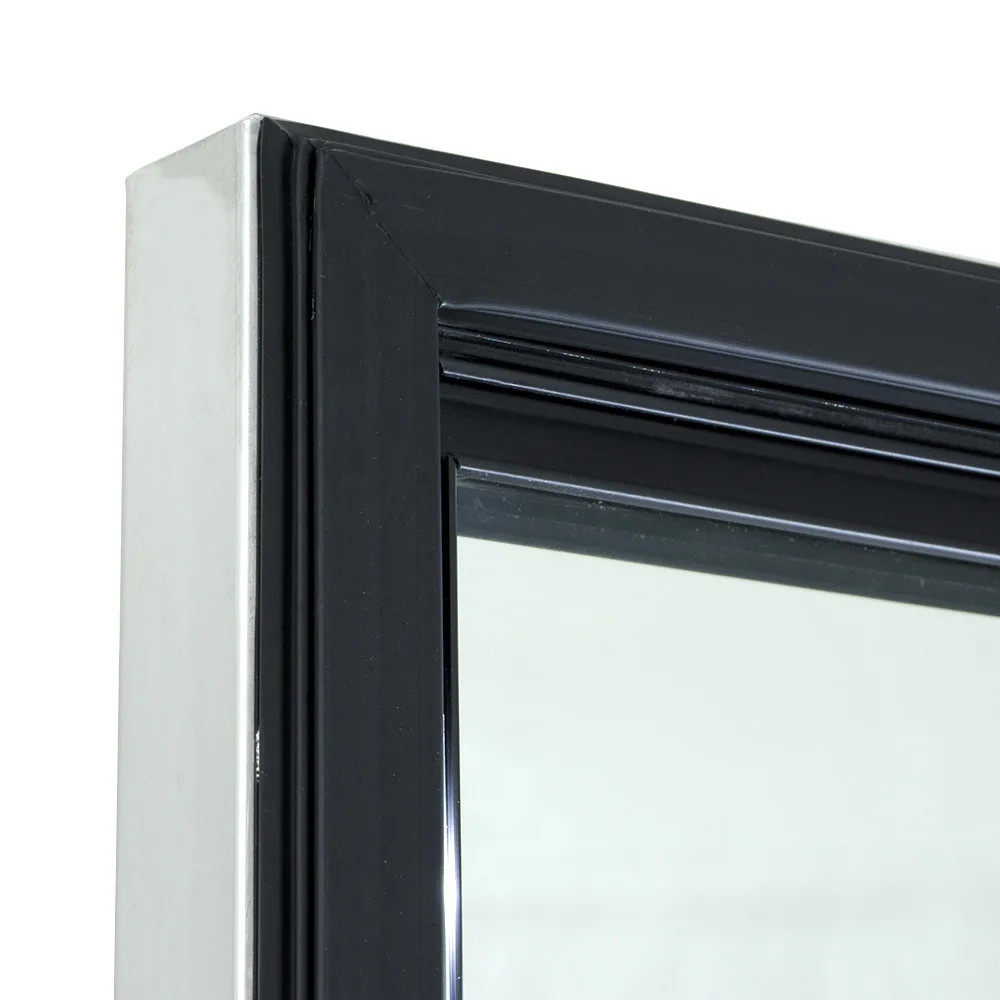

- Double-pane glass door enables operators to locate items before opening it
- Self-closing door retains cold air
- 15-in. extruded door handle
- Magnetic gaskets reduce air leaks
- Stainless steel front resists dents, scratches, and corrosion
- Polyurethane insulation is foamed in place to block hot air

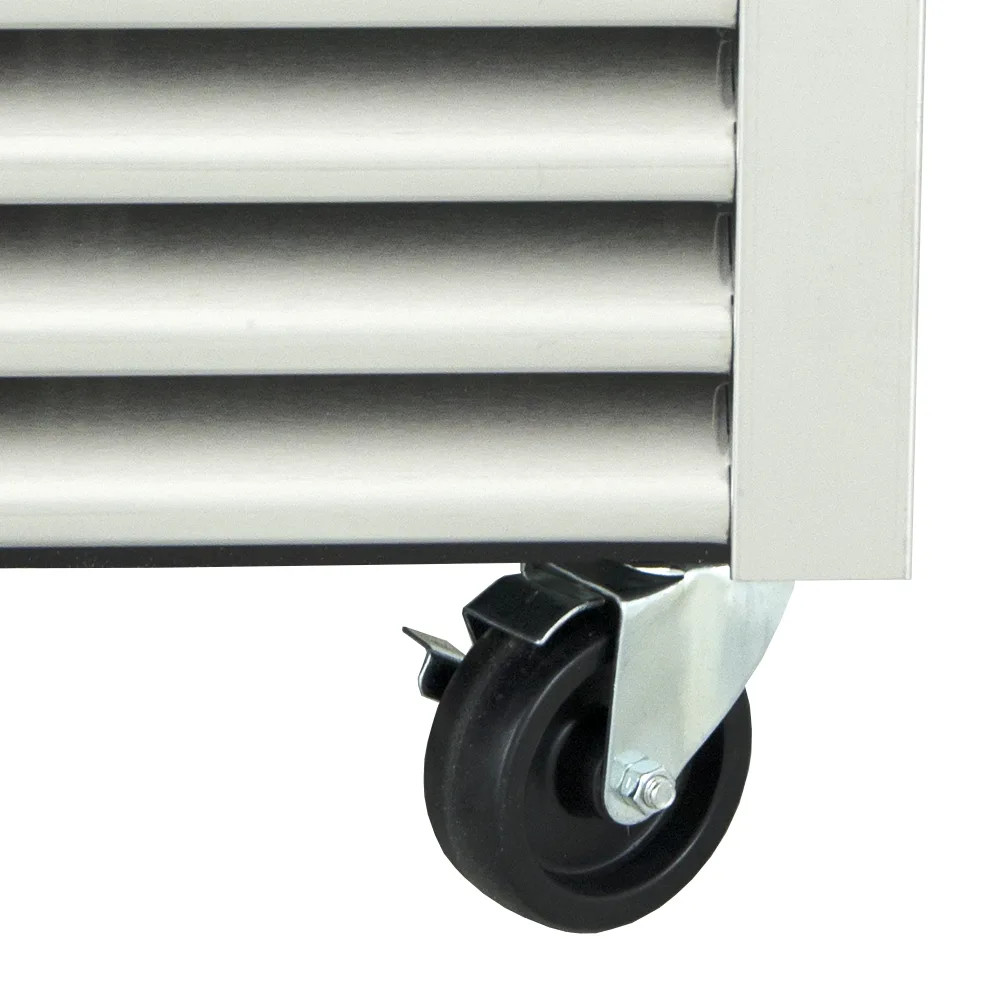

- 4-in. castors with locking front set

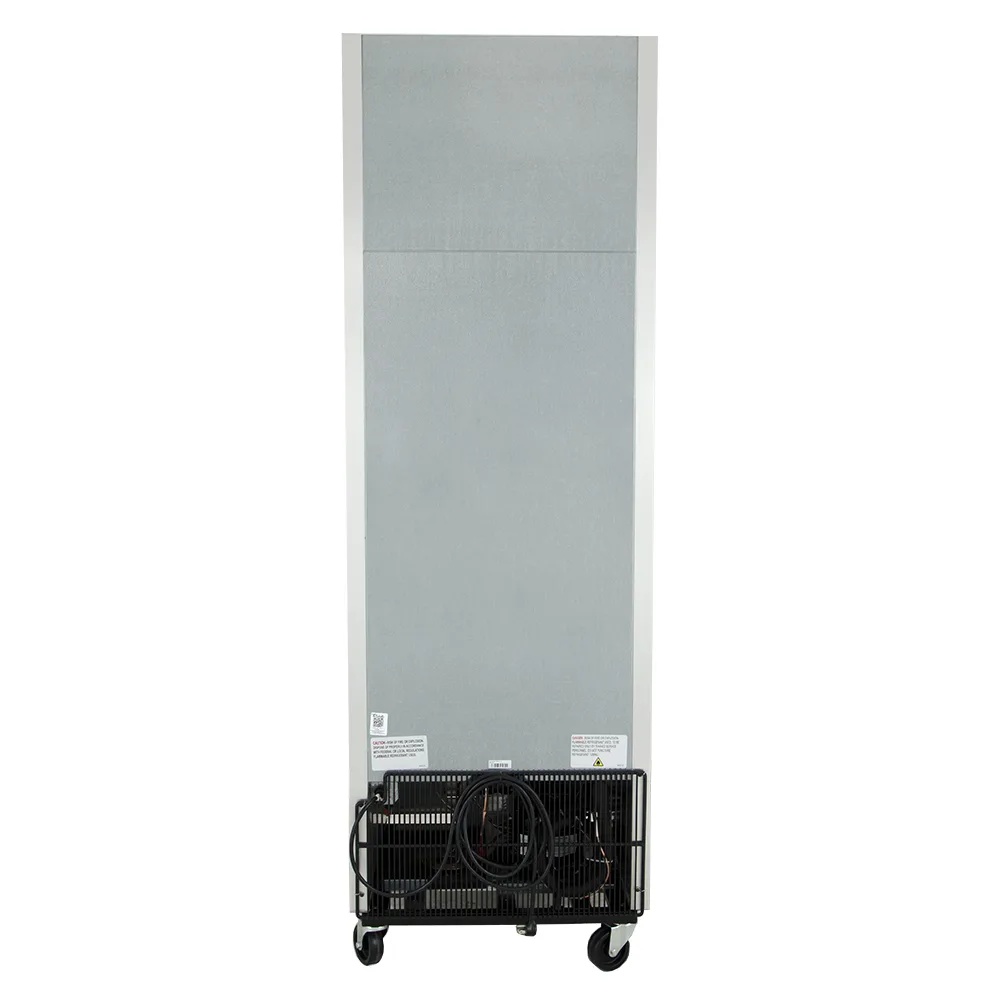

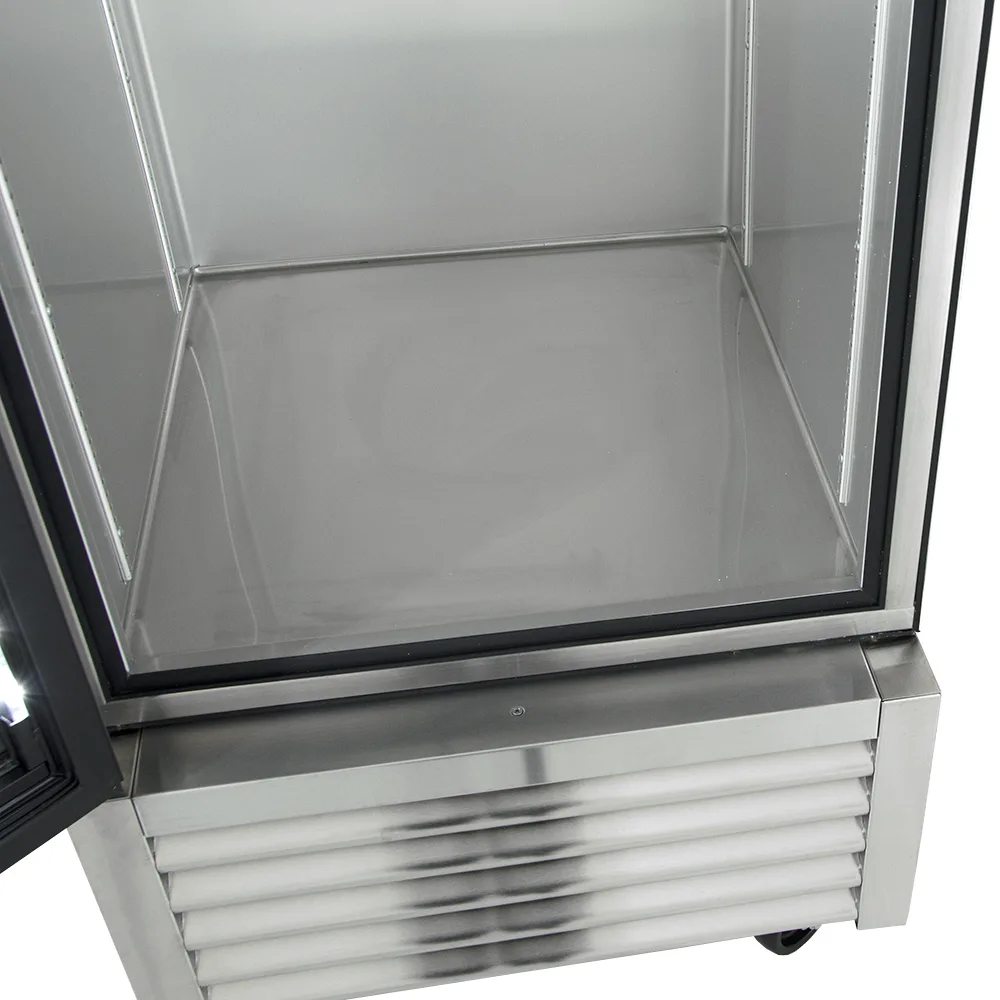

Bottom-mount Refrigeration System
- Temperature range: 33-38 degrees F

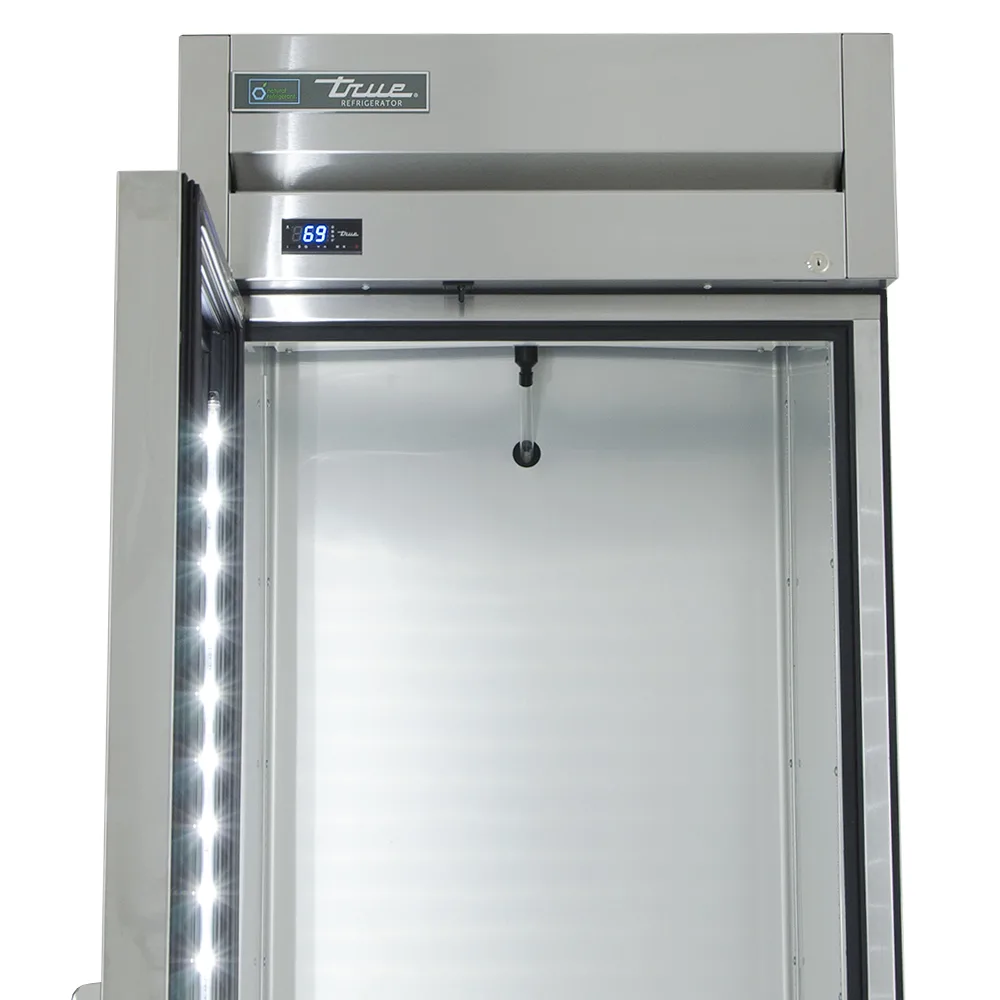

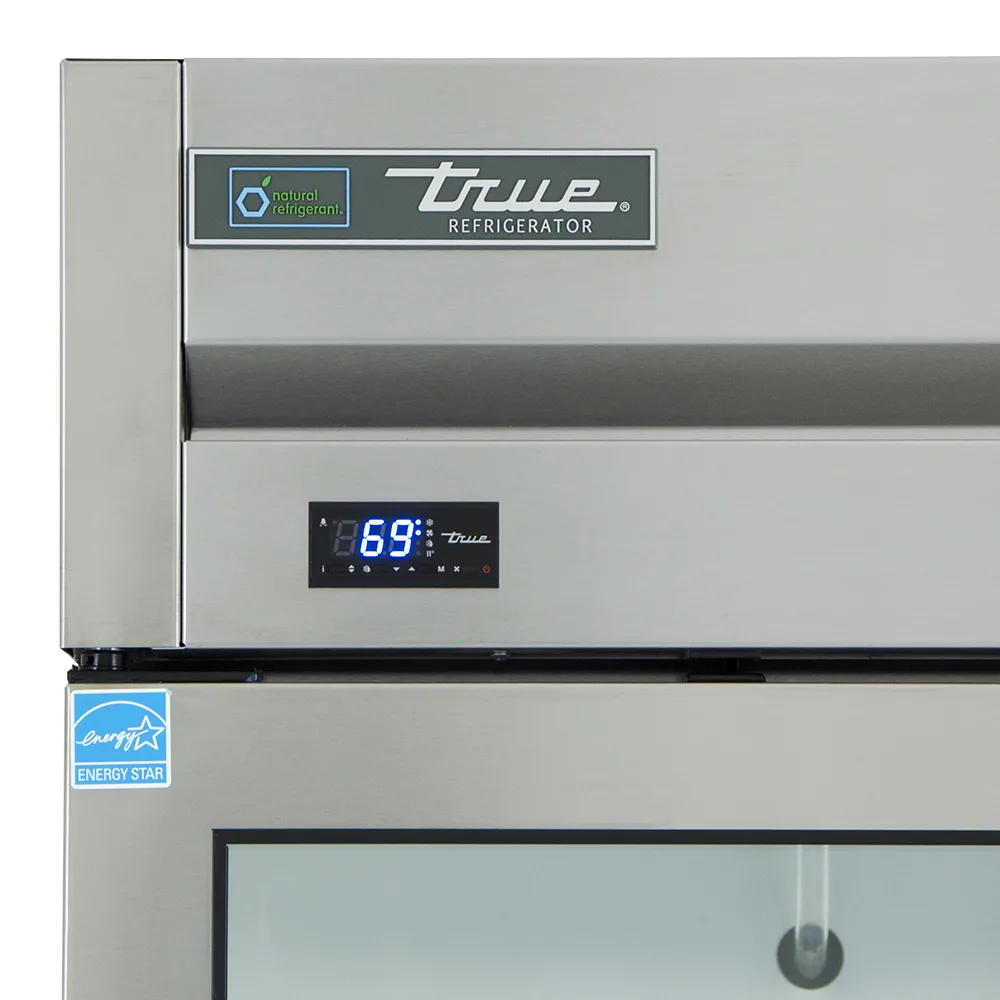

- External temperature display
- Capillary tube system controls R290 hydrocarbon refrigerant
- Bottom-mounted location keeps the compressor in the coolest part of the kitchen
- Accessible condenser coil
- Corrosion-resistant, epoxy-coated evaporator
- Condenser and evaporator fan motors consistently move air around the cabinet
- Condensing coil buildup eliminated with daily reverse condensing fan technology
Dimensions & Utilities
- Shelves: 227⁄8 in. W x 231⁄4 in. D
- Overall: 27 in. W x 311⁄4 in. D x 833⁄8 in. H
- 2.2 A, 1⁄4 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
| Manufacturer | True Refrigeration |
| Compressor Location | Bottom |
| Cubic Feet | 20.8 |
| Depth (in) | 29.88 |
| Door Type | Glass |
| Doors | Full |
| Height (in) | 78.38 |
| Hertz | 60 |
| Interior Material | Aluminum |
| Sections | 1 |
| Type | Reach In |
| Warranty | 7-year Parts & Labor; 7-year Compressor |
| Width (in) | 27 |
| Refrigerant | R290 (Hydrocarbon) |
| No. of Doors | 1 |
| Phase | 1 |
| Rating | Better |
| Product | Reach-In Refrigerators |
| Product Type | Commercial Refrigeration |
| NEMA | 5-15P |
| Hinge Configuration | Right |
| Weight | 335.00 |
