Description

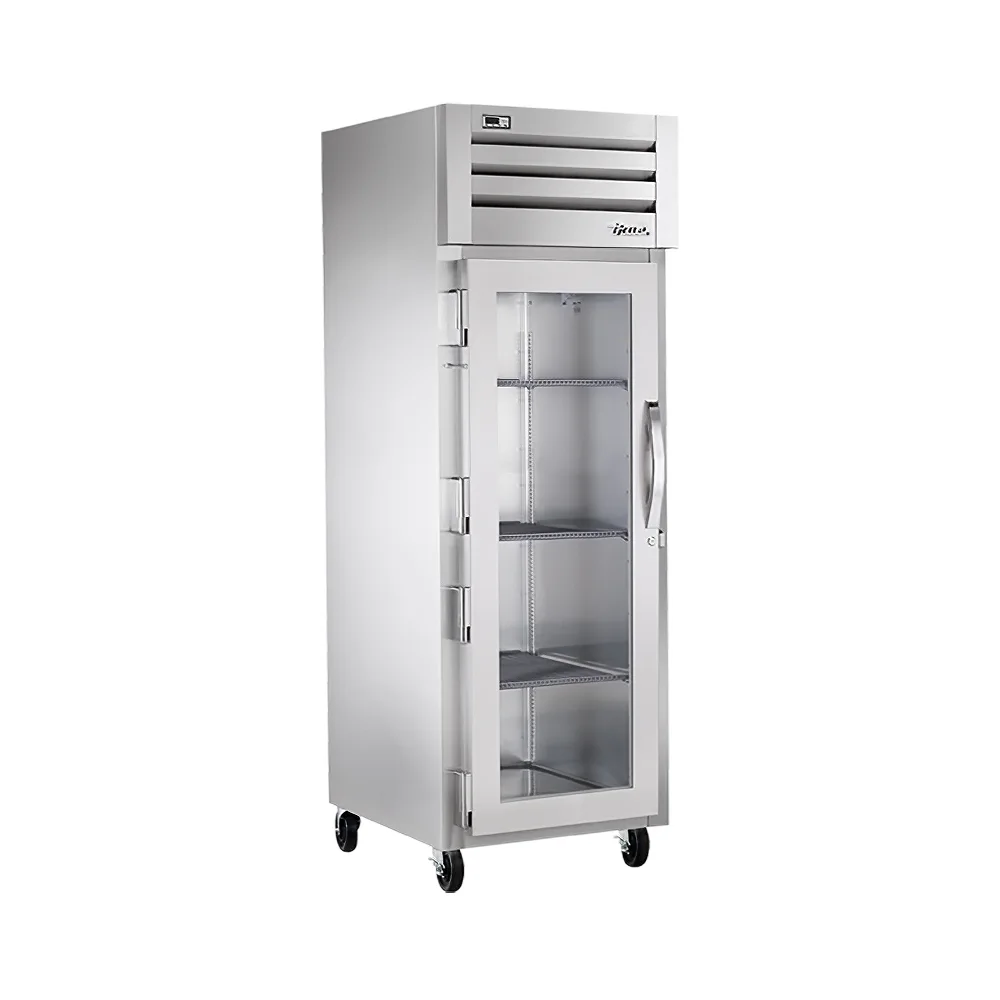

True   28″ One Section Reach In Freezer, (1) Left Hinge Glass Door, 115v

The True STG1F-1G-HC one-section reach-in freezer includes three wire shelves that are PVC coated to provide corrosion resistance and durability. To support high-volume use and prevent rusting, the unit is made of aluminum and stainless steel. Foamed-in-place insulation traps cold air, and an LED interior light shines on the stored items to ensure visibility.

This freezer has a triple-pane glass window in the door so employees can see stored items without letting cold air out. Its door is left hinged and has a durable metal handle on the right side. If it is accidentally left open, the door self-closes to prevent cold air from escaping, and it remains open past 120 degrees for cabinet cleaning or product loading. Its magnetic gaskets can be removed without tools and seal the door to the frame to hold in cold air. A door lock protects stored items from potential tampering and theft.

With R290 hydrocarbon refrigerant, the temperature in the True STG1F-1G-HC one-section reach-in freezer stays at -10 degrees Fahrenheit, though because the temperature is so cold, condensation can freeze on the evaporator and turn to frost. To prevent this from causing system issues, the unit automatically runs a defrost cycle on a timer that stops when the freezer senses the evaporator temperature is safe. Ending the defrost cycle with temperature sensing instead of a timer saves on operation costs. The condenser fan motor in this unit reverses upon start up for 20 seconds, blowing dust and dirt off the coil. Keeping the coil clean ensures the system is running efficiently without using a lot of energy. It also maintains consistent temperature levels and prolongs the life of the refrigeration system. Even though this self-cleaning feature offers system benefits, it doesn’t replace routine preventative maintenance procedures. Mounted on top of the freezer, the refrigeration system will not suck in debris from the floor, however it is more difficult to reach for servicing.

Product Details

• 3 durable, PVC-coated wire shelves
• LED interior lighting increases product visibility
• Aluminum interior walls and back
• Stainless steel interior floor and ceiling
• Aluminum exterior sides
• Foamed-in-place polyurethane insulation retains cold air
• R290 hydrocarbon refrigerant
• Operating temperature: -10 degrees F
• Exterior temperature can display in Fahrenheit or Celsius
• Electronically commutated condenser and evaporator fan motors consistently move air without using too much heat or energy
• Time-initiated, temperature-terminated defrost cycles
• Epoxy evaporator coating provides corrosion resistance
• Top-mounted refrigeration system sits away from debris and dirt on the floor
• 5-in. castors
• Part of the Spec Series®

Heavy-duty Door Construction

• Triple-pane thermal glass provides visibility into the cabinet
• Stainless steel construction with a durable metal handle
• Left hinged with a handle on the right
• Self-closing for convenience and cold-air retention
• Stays open past 120 degrees when users are loading product
• Magnetic gaskets create a seal that prevents cold air leaks
• Gaskets can be removed without tools
• Bolt-style lock provides theft protection

Dimensions & Utilities

• 27¹⁄₂ in. W x 35¹⁄₄ in. D x 84¹⁄₈ in. H
• 8.9 A, 1 HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
