Description
Koolaire KDT0300A/K400 Description

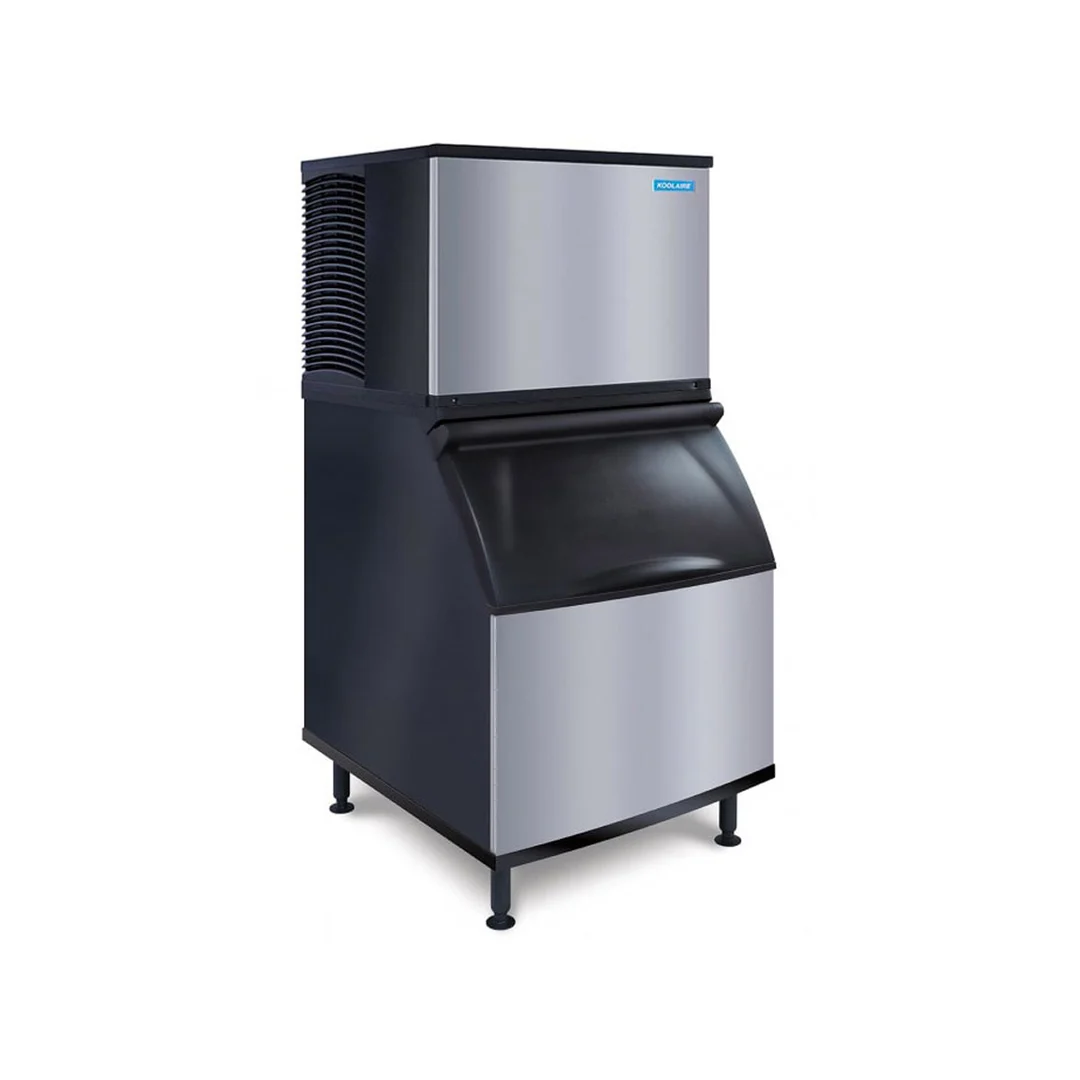

The Koolaire KDT0300A/K400 ice maker with bin can produce 333 pounds in 24 hours, making full-cube ice that is ideal for restaurants and bars. Its condenser is air cooled, so the equipment is cooled with fresh air circulated by fans. Inside the ice maker, the food zone – the area that houses components that come in contact with water or ice – is accessible behind the lift-off door. Parts in this area are made of corrosion-resistant plastic, and users can see which areas need cleaning since they are white. Some of the parts are removable, which simplifies the cleaning process.
This Koolaire KDT0300A/K400 ice machine head with bin can store 365 pounds. It has a bin door that is insulated with foam to retain cold air and prevent condensation accumulation. This door stays open, so users can scoop ice, and a holder inside the bin keeps the scoop out of ice to prevent contamination. Similar to stainless steel, the exterior on the ice machine and bin resists corrosion and fingerprints, while black side panels are made to match the ice machine head.
Ice Maker Details
- 333-lb. maximum daily ice production
- 230-lb. AHRI-certified daily ice production
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Air-cooled condenser uses a fan to cool equipment
- Uses R410A refrigerant
- Removal of 2 screws and lift-off door provides convenient food zone access
- Corrosion-resistant plastic components in the food zone are white so users can identify areas that need cleaning
- Removable distribution tube, water shield, pump, floats, and trough
- Stainless steel exterior resists smudges and corrosion
- Required ambient air temperature: 40-110 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming water pressure: 20-80 PSI
Ice Bin Details
- 365-lb. application capacity
- 12.3-cu.-ft. AHRI-certified capacity
- Door is foam insulated to reduce condensation and retain cold air
- Stay-open door design for scooping access
- 82-oz. scoop
- Internal scoop holder keeps handle out of ice to prevent contamination
- Stainless steel-like exterior finish
- Black side panels match the ice maker
- Legs elevate the unit for cleaning access
Dimensions & Utilities
- Ice Maker
- 30 in. W x 24 in. D x 21.5 in. H
- 9.4 A, 5.9 kW
- 115 V/60 Hz/1 ph
- Bin
- 30 in. W x 34 in. D x 32 in. H
*Free shipping on Koolaire KDT0300A/K400 within the 48 contiguous states.
Koolaire KDT0300A/K400 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| 24 Hr. Production (lb) | 330 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 365 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 53.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R410A |
| Series | KDT Series |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 228.00 |
Additional information
| Weight | 228 lbs |
|---|---|
| Dimensions | 30 × 34 × 53.5 in |
