Description

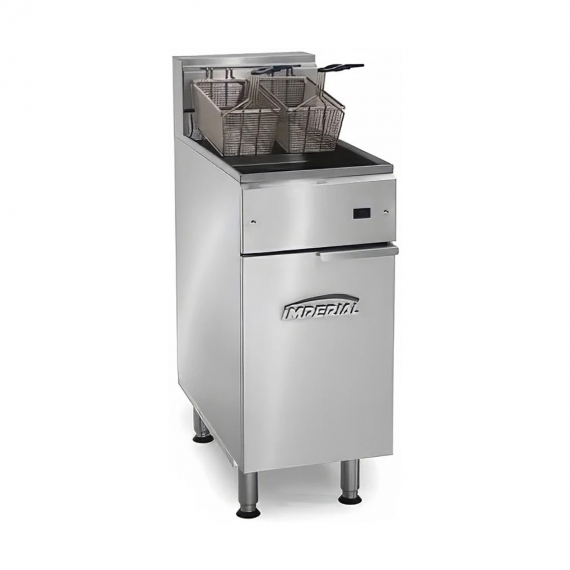

Imperial Tube Fired Fryers 40 LB. Floor Model
Tube Fired Burners
High efficiency cast iron burners have a large heat transfer area.
Tubes are constructed of heavy gauge metal with a built-in deflector system.
105,000 BTU (31 KW) total output.
Millivolt temperature control circuit.
Snap acting thermostat has a 200° F – 400° F (93° C-204° C) temperature range.
Fast recovery to desired temperature.
Heats oil quickly producing a better tasting product with less oil absorption.
100% safety shut-of
Large Cool Zone
Captures and holds particles below the tubes, out of the fry zone.
Reduces taste transfer.
Stainless Steel Frypots
Frying area is 14″ x 14″ (356 x 356 mm).
Frypot tubes and sides are robotically welded stainless steel to virtually eliminate leaks.
Fine mesh wire crumb is included.
Recessed bottom facilitates draining, slants toward the drain.
1-1/4″ (32 mm) full port drain valve empties frypot quickly and safely.
Two large, nickel-plated fry baskets with vinyl coated, heat protection, handles are included.
Basket hangers are stainless steel.
Exterior Features
Stainless steel front, door, sides, basket hanger and frypot.
Welded and polished stainless steel seams.
Full heat shield protects control panel.
Full bottom chassis provide structural support.
Plate mounted 6″ (152 mm) heavy duty stainless steel legs or optional casters assures secure support.
One year parts and labor warranty. Limited warranty on frypot, stainless steel frypot is five years pro-rated.
Imperial IFS-40 Specs
| Brand | Imperial |
|---|---|
| Model Number | IFS-40 |
| Weight | 221 lbs |
| Width | 15.5″ |
| Depth | 30.5″ |
| Height | 45.75″ |
| Power Type | gas |
| Installation Type | floor model |
| Tank & Pot Type | full pot |
| Gas Type | NG or LP |
| Number of Fry Pots | 1 |
| Total BTU | 105 |
| Exterior Finish | stainless steel front & sides |
| Burner Style | tube type |
| Controls | millivolt controls |
| Type | restaurant |
| Filter | no filter |
| Fry Pot Construction | stainless steel |
| Basket Lifts | no basket lifts |
| Fat Capacity (lbs) | 40 |
Additional information
| Weight | 221 lbs |
|---|---|
| Dimensions | 15.5 × 30.5 × 45.75 in |
| brand | |
| Power Type | |
| Fry Pot Capacity | 30-50 lbs |
| BTUs | 105K |
