Description

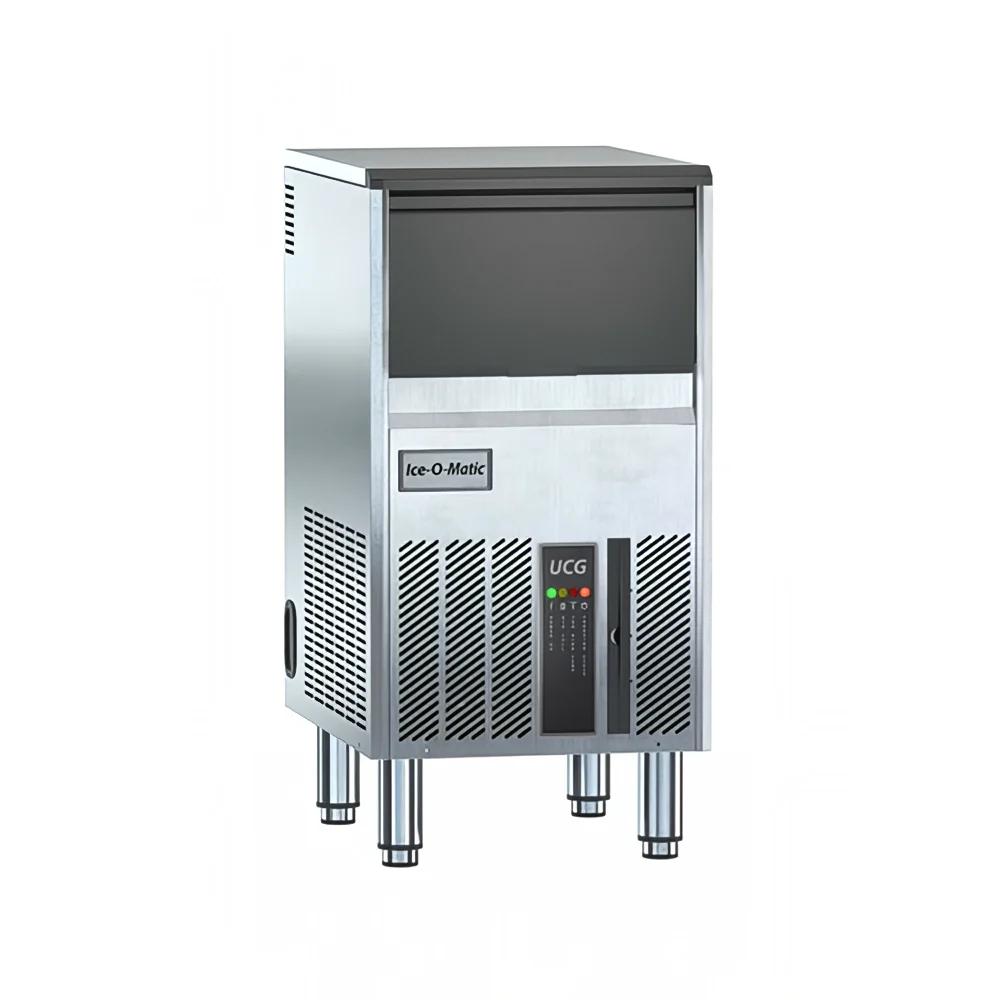

Ice-O-Matic UCG060A Description
The Ice-O-Matic UCG060A undercounter ice maker produces gourmet-style ice cubes that measure 17/20 inches in diameter by 11/5 inches high. Its air-cooled condenser is self-contained to streamline installation and operates using natural R290A hydrocarbon refrigerant that’s safe for the environment. In ideal operating conditions, this unit produces 63 pounds of ice per day. The bin accommodates as much as 171/2 pounds of ice for later use.
To enable installation on uneven floors, the Ice-O-Matic UCG060A top hat ice maker with bin is positioned on adjustable legs that prevent wobbling. It’s made of durable stainless steel with plastic components that resist fingerprint smudges to offer a clean appearance. Overall, this unit measures 151/4 inches wide by 20 inches deep by 251/4 inches high.
Product Details
- 63-lb. maximum daily ice production
- 171/2-lb. capacity bin
- Crafts gourmet-style ice
- Gourmet ice dimensions: 17/20 in. dia. x 11/5 in. H
- Undercounter unit
- Air-cooled, self-contained condenser
- Stainless steel and fingerprint-resistant plastic construction
- Uses R290A hydrocarbon refrigerant
- Adjustable legs
- BPA free
- Ideal incoming water temperature: 41-100 degrees F
- Ideal incoming air temperature: 50-109 degrees F
- Ideal incoming water pressure: 14-70 PSI
Dimensions & Utilities
- 151/4 in. W x 20 in. D x 251/4 in. H
- 5.1 A, 17.8 kW
- 115 V/60 Hz/1 ph, cord included
Ice-O-Matic UCG060A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 63 |
| Bin Capacity (lb) | 17.5 |
| Compressor Type | Air Cooled |
| Depth (in) | 20 |
| Design | ADA Height |
| Drain Type | Gravity |
| Height (in) | 25.25 |
| Hertz | 60 |
| Ice Type | Top Hat |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor |
| Width (in) | 15.25 |
| Phase | 1 |
| Rating | Better |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| NEMA | 5-15P |
| Front Style | Lift Door |
| Weight | 81.50 |
Additional information
| Weight | 81.5 lbs |
|---|---|
| Dimensions | 15.25 × 20 × 25.25 in |
| brand | |
| Ice Type | Gourmet |
| Production | 50-100 lbs/day |
| Bin Capacity (lbs) | 10-40 lbs |
| Cooling System Type | Air Cooled |
| Voltage Type | 110-120 V. |
