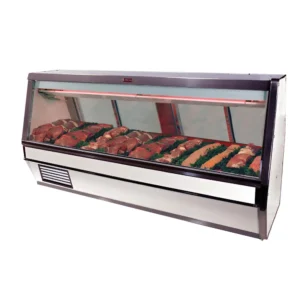

Howard-McCray SC-CMS40E-6-LED 75 1/2″ Full Service Red Meat Case w/ Straight Glass – (1) Level, 115v
The image above may not exactly represent the product
Free Shipping
$7,491.50
Call for More Info
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Fast Shipping
2-4 Business Days
20k products
Payment methods
24/7 Support
Contact Us For More Info
Fast Local Delivery
Give us a Call (833)-345-2433
Description
• UL Classified to ANSI/NSF 7
• Foamed in place CFC free foam
• Thermal insulated front glass – 28″ H
• Heavy gauge steel super structure
• Single duty display
• Endless design allows for continuous line up
• Drain is included for cleaning
INTERIOR
• White, black, and stainless steel ends
• Air insulated baffle (prevents moisture from
dripping into display area)
EXTERIOR
• Double pane rear removable doors
• Newly designed rear compression door jamb
• Removable front grille allows for cleaning
• Removable rear grille for easy servicing
• 2 – 1/4″ removable end panels
• 1″ Front bumper
FINISHES
• White, black, and stainless steel front and ends
• Stainless steel mirror trim
• Stainless steel heavy gauge top – 20″ W
• Rear of unit is stainless steel brush finish at top
• Bottom rear is designer white or glossy black
LIGHTING
• 2 rows of LED lighting at top of unit
ELECTRICAL REQUIREMENTS
• 115V, 4′, 6′, AND 8′ with power cord
• Unit must be hard wired, 10′ and 12′ ONLY
• UL/CUL listed
• 115V-12AMP general purpose receptacle
(wired separately) 10′ and 12′ ONLY
REFRIGERATION
• Copevap system (eliminates need for
condensate pan)
• R513A expansion valve system (SC)
• R448A expansion valve system (R)
• Humidity coil located at inside top of unit
• Self contained unit
• Automatic defrost electronically controlled
(self contained units only)
• Electronically maintains constant temperatures
• Remotes available
OPTIONS
• Scale stand
• Paper cutter
• Stainless steel, laminate, or paint
• Mirrored doors
• Extra stainless steel mezzanine shelf
• Drop work shelf
• 1″ Special color front bumper
• Door locks
• Digital thermometer
• Meat platters
• Red meat bulbs
Important Note:
All refrigerated cases are designed to operate in an environment of 75 degrees and 55% relative humidity.
Product must be cooled before being displayed within the case.
DRAIN IS REQUIRED
Howard-McCray SC-CMS40E-6-LED Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Howard-McCray |
| Access | Full Service |
| Color | White |
| Depth (in) | 40 |
| Door Type | Glass |
| Height (in) | 53 |
| Hertz | 60 |
| Number of Levels | 1 |
| Shelving Type | Mezzanine |
| Special Features | LED Lighting |
| Style | Straight Glass |
| Voltage | 115 |
| Warranty | 1-year Parts & Labor; 5-year Compressor |
| Width (in) | 75.5 |
| Phase | 1 |
| Rating | Better |
| Weight | 741.00 |
Additional information
| Weight | 741 lbs |
|---|---|
| Dimensions | 75.5 × 40 × 53 in |
| brand |
Howard-McCray |
| Length (L to R) |
72" + |
| Refrigeration Type |
Self-Contained |
| Color |
White |
| Style |
Straight Glass |
