Description

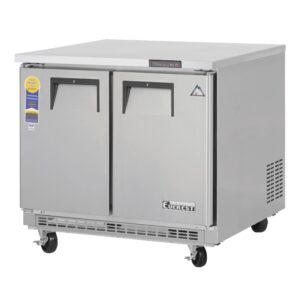

The Everest ETBSF2 Refrigeration System
- Bottom mounted, self-contained and retractable condensing unit uses environmentally friendly R404A refrigerant with zero (0) Ozone Depletion Potential (ODP) and EPA compliant R290 refrigerant with zero (0) Ozone Depletion Potential (ODP) and three (3) Global Warming Potential (GWP). R290 condensing units are replaceable and require no on-site brazing
- Front air breathing for flexibility in installation.
- PSC evaporator fan motors for R404A models. Electronically commutated (ECM) fan motors for R290 models
- R290 models include full-length air duct system
- Time-initiated and temperature-terminated auto defrost heater.
- Large capacity, corrosion-resistant condenser and evaporator coils.
- Self-maintaining, energy-efficient condensate drain pan requires no external drains or electric heaters.
- High performance condenser fan motors ensure efficient compressor ventilation. R290 models use autoreverse condenser fan motors which also support condenser coil cleaning. Refer to owner?s manual for full maintenance instructions.
- Pressure relief devices allow smooth access to cabinet interior when re-opening doors.
- Pre-wired and ready to plug, 115V/60Hz/1Ph, NEMA 5-15P.
Cabinet Construction And Doors
- Heavy duty stainless steel interior / exterior with rounded corners for a hazard-free workspace
- 16 gauge, high quality stainless steel worktop.
- Galvanized steel top, bottom and rear.
- 2.5″ thick high density polyurethane insulation.
- Four 5″ swivel casters with locks on front set and two front leg stabilizers.
- Heavy duty stainless steel interior / exterior.
- 2.5″ thick high density polyurethane insulation.
- Frame heaters prevent exterior moisture build up.
- Self-closing with adjustable torsion system for a positive seal.
- Snap-in magnetic door gasket make cleaning and replacement an easy process.
- High strength, recessed door handles.
- Pre-installed door locks keep your items safe from theft.
Shelving And Temperature Control
- Two epoxy coated, steel wire shelves per section.
- Height adjustable stainless steel clips.
- Multi-function digital controller with easy to read LED display.
- Factory preset temperature, -4?F. Temperature setting range from -10?F to 54?F.
- R290 models include audible overheat protection alarm for compressor and condenser coil.
| Brand | Everest Refrigeration |
|---|---|
| Model Number | ETBSF2 |
| Weight | 231 lbs |
| Width | 35.63″ |
| Depth | 31.5″ |
| Height | 35.25″ |
| Size | 2 section |
| Door Type | solid |
| Refrigeration | self-contained, bottom mounted |
| Capacity (Cu. Ft.) | 10 |
| Door Quantity | 2 |
| Special Features | locking, with worktop |
| Handle Type | recessed |
| Compressor Style | front breathing |
| Exterior Finish | galvanized & stainless steel exterior |
| Access Type | doors |
| Compressor HP | 1/3 HP |
| Certifications | cETLus, ETL-Sanitation, NSF |
Additional information
| Weight | 231 lbs |
|---|---|
| Dimensions | 35.63 × 31.5 × 35.25 in |
| brand |
