Description

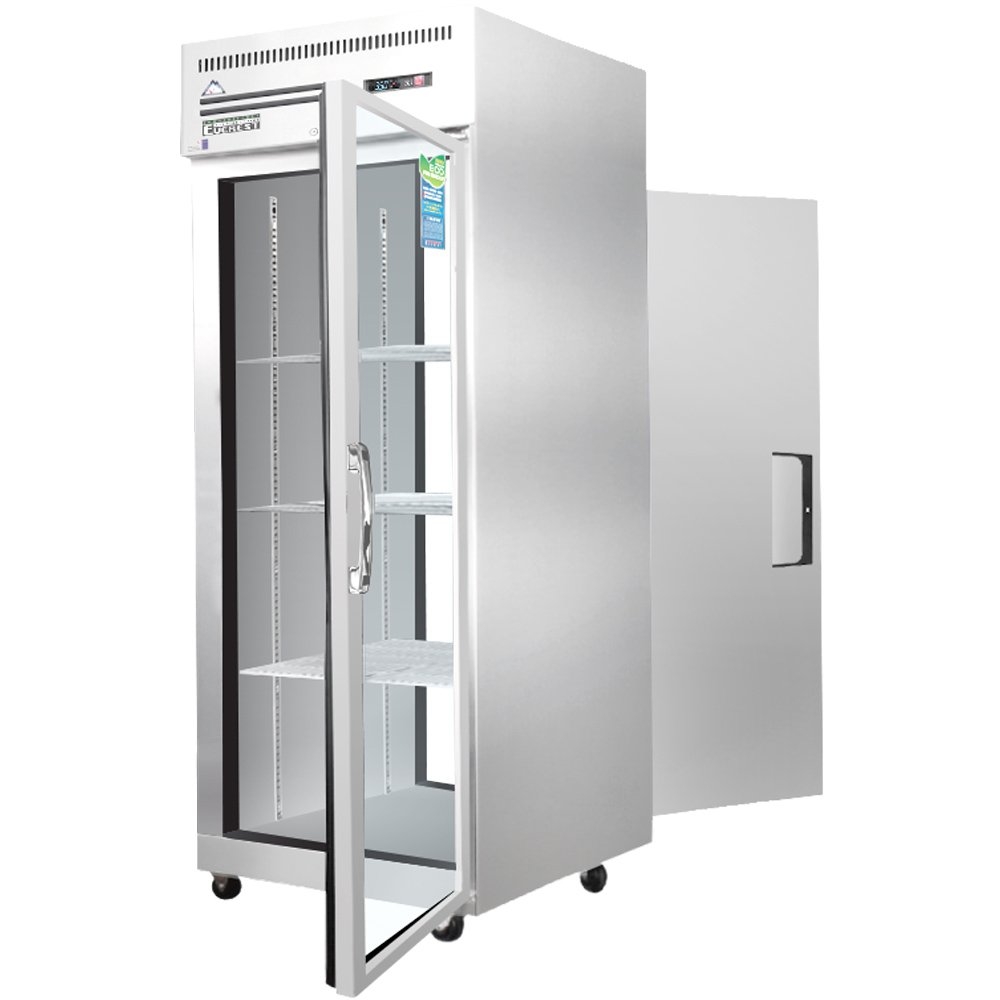

The Everest ESPT-1G-2S Refrigeration System
- Top mounted, self-contained and fully detachable Blizzard R290 condensing unit uses environmentally friendly, EPA-compliant R290 refrigerant with zero (0) Ozone Depletion Potential (ODP) and three (3) Global Warming Potential (GWP). Blizzard R290 is easily replaceable and requires no on-site brazing.
- Electronically commutated (ECM) fan motors achieve rapid cooling with less energy consumption.
- Full-length air duct system and airflow guard ensure optimal circulation of cold air.
- Time-initiated and temperature-terminated auto defrost cycle for seamless operation.
- Large capacity, corrosion-resistant condenser and evaporator coils.
- Self-maintaining, energy-efficient condensate drain pan requires no external drains or electric heaters.
- High performance condenser fan motors ensure efficient compressor ventilation. R290 models use autoreverse condenser fan motors which also support condenser coil cleaning. Refer to owner?s manual for full maintenance instructions.
- Pressure relief devices allow smooth access to cabinet interior when re-opening doors.
- Pre-wired and ready to plug, 115V/60Hz/1Ph, NEMA 5-15P.
Cabinet Construction And Doors
- Pass Thru design allows seamless access from both front and back entry points
- Heavy duty stainless steel interior / exterior with rounded corners for a hazard-free workspace
- Galvanized steel top, bottom and rear.
- 2.5″ thick high density polyurethane insulation.
- Four 5″ swivel casters with locks on front set
- Front glass door has low emissivity double glass panes that reflect UV rays for efficient cooling. Rear solid door has stainless steel exterior/interior.
- 2.5″ thick high density polyurethane insulation.
- Frame heaters prevent exterior moisture build up.
- Self-closing with adjustable torsion system for a positive seal.
- Snap-in magnetic door gasket make cleaning and replacement an easy process.
- High strength, die-cast door handles.
- Pre-installed door locks keep your items safe from theft.
- Field reversible.
- Energy efficient silicone coated and shatter-proof LED lighting provides bright, high color illumination with low heat output.
Shelving And Temperature Control
- Three epoxy coated, steel wire shelves per section.
- Height adjustable stainless steel clips.
- Multi-function digital controller with easy to read LED display.
- Factory preset temperature, 35?F. Temperature setting range from 33?F to 54?F.
- Audible overheat protection alarm for compressor and condenser coil.
| Brand | Everest Refrigeration |
|---|---|
| Model Number | ESPT-1G-1S |
| Weight | 364 lbs |
| Width | 29.25″ |
| Depth | 33.71″ |
| Height | 74.25″ |
| Door Type | solid & glass combination |
| Refrigerator Type | Pass-Thru |
| Size | 1 section |
| Door Quantity | 2 |
| Exterior Finish | stainless steel |
| Refrigeration | self-contained, top mounted |
| Compressor HP | 1/4 HP |
| Capacity (Cu. Ft.) | 23 |
| Interior Finish | stainless steel |
| Supports | casters |
| Hinge Location | right |
| Refrigerant Type | R-290 |
| Door Style | swing / full |
Additional information
| Weight | 364 lbs |
|---|---|
| Dimensions | 29.25 × 33.71 × 74.25 in |
| brand |
