Description

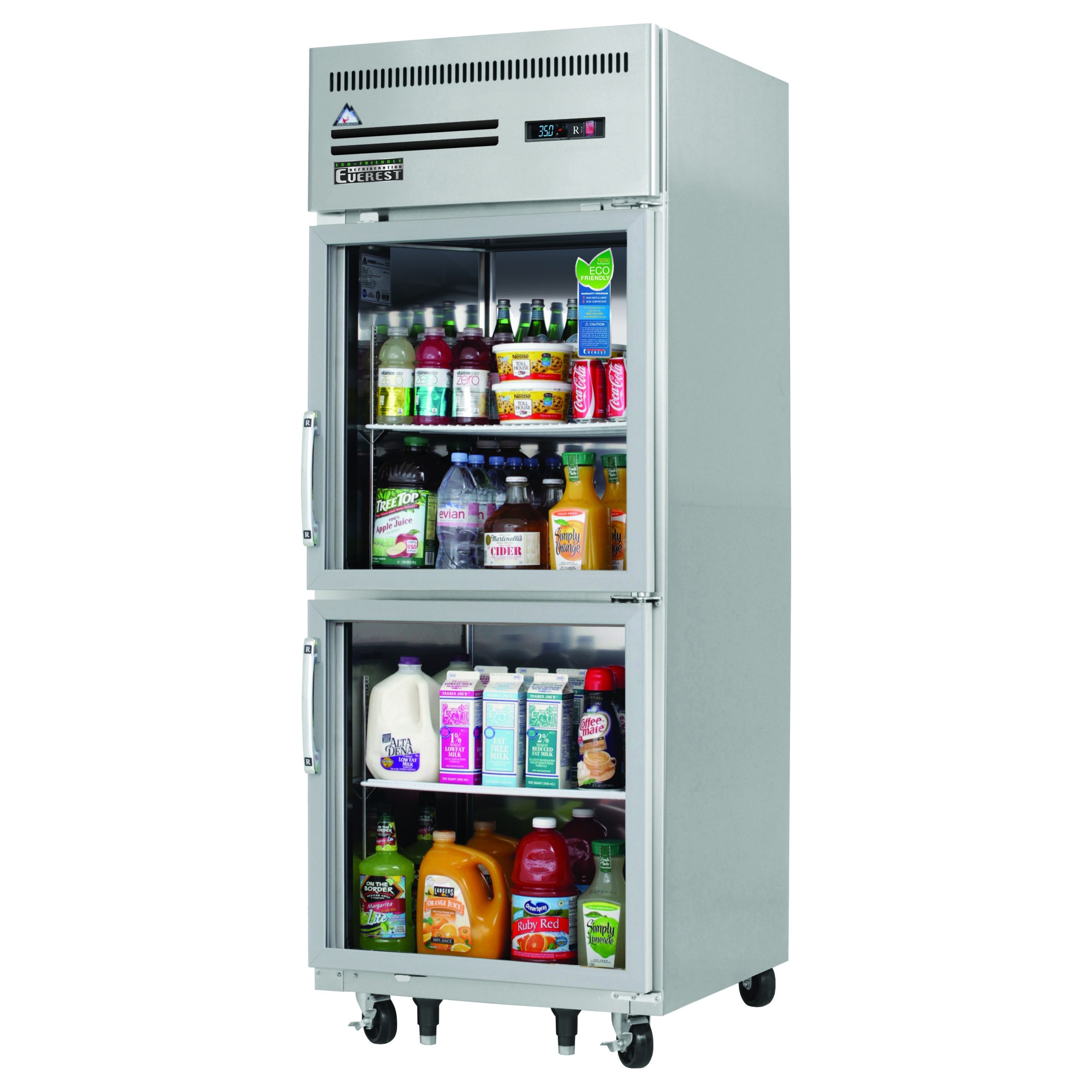

The Everest ESGRH2 Refrigeration System
- Top mounted, self-contained and fully detachable Blizzard R290 condensing unit uses environmentally friendly, EPA-compliant R290 refrigerant with zero (0) Ozone Depletion Potential (ODP) and three (3) Global Warming Potential (GWP). Blizzard R290 is easily replaceable and requires no on-site brazing.
- Electronically commutated (ECM) fan motors achieve rapid cooling with less energy consumption.
- Full-length air duct system and airflow guard ensure optimal circulation of cold air.
- Time-initiated and temperature-terminated auto defrost cycle for seamless operation.
- Large capacity, corrosion-resistant condenser and evaporator coils.
- Self-maintaining, energy-efficient condensate drain pan requires no external drains or electric heaters.
- High performance condenser fan motors ensure efficient compressor ventilation. R290 models use autoreverse condenser fan motors which also support condenser coil cleaning. Refer to owner?s manual for full maintenance instructions.
- Pressure relief devices allow smooth access to cabinet interior when re-opening doors.
- Pre-wired and ready to plug, 115V/60Hz/1Ph, NEMA 5-15P.
Cabinet Construction And Doors
- Heavy duty stainless steel interior / exterior with rounded corners for a hazard-free workspace
- Open spaced interior with no walls between compartments.
- Galvanized steel top, bottom and rear.
- 2.5″ thick high density polyurethane insulation.
- Four 5″ swivel casters with locks on front set and two front leg stabilizers.
- Low emissivity double glass panes reflect UV rays for efficient cooling.
- Matte finish aluminum door frames.
- Frame heaters prevent exterior moisture build up.
- Self-closing with adjustable torsion system for a positive seal.
- Snap-in magnetic door gasket make cleaning and replacement an easy process.
- High strength, die-cast door handles.
- Pre-installed door locks keep your items safe from theft (does not apply to models ESGRH2 and ESGRH4).
- Field reversible.
- Shielded LED bar lighting with on/off switch provides bright, high color illumination at lower heat output.
Shelving And Temperature Control
- Four epoxy coated, steel wire shelves per section.
- Height adjustable stainless steel clips.
- Multi-function digital controller with easy to read LED display.
- Factory preset temperature, 35?F. Temperature setting range from 33?F to 54?F.
- Audible overheat protection alarm for compressor and condenser coil.
| Brand | Everest Refrigeration |
|---|---|
| Model Number | ESGRH2 |
| Weight | 329 lbs |
| Width | 29.25″ |
| Depth | 31.63″ |
| Height | 79.25″ |
| Door Type | glass |
| Refrigerator Type | Reach-In |
| Size | 1 section |
| Door Quantity | 2 |
| Exterior Finish | stainless steel front & sides |
| Compressor HP | 1/4 HP |
| Refrigeration | self-contained, top mounted |
| Interior Finish | all stainless steel interior |
| Supports | casters |
| Refrigerant Type | R-290 |
| Capacity (Cu. Ft.) | 23 |
| Hinge Location | right |
| Door Style | swing / half |
Additional information
| Weight | 329 lbs |
|---|---|
| Dimensions | 29.25 × 31.63 × 79.25 in |
| brand |
